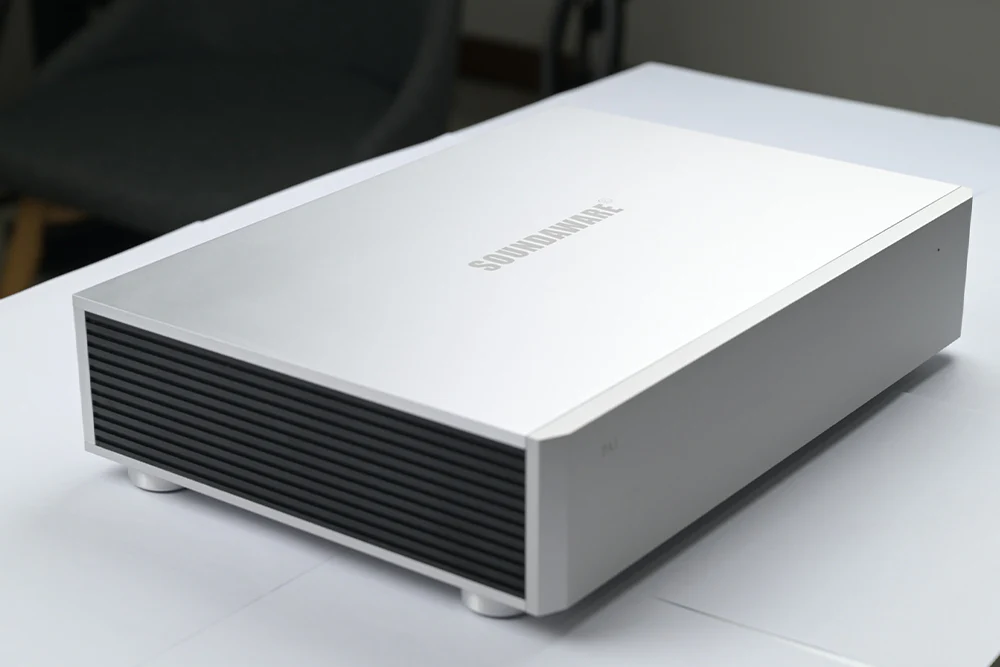

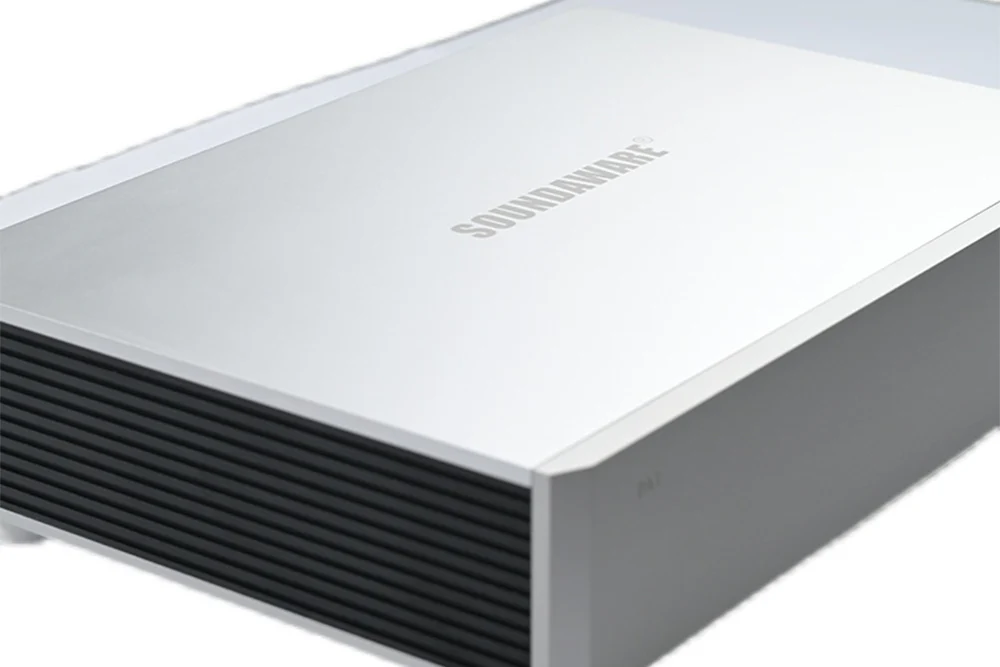

SOUNDAWARE PA1-REF Reference USB Reclocker

The Soundaware PA1-REF is a reference-grade USB reclocker and signal regeneration device designed to eliminate one of the biggest limitations in digital audio systems — USB noise and timing instability.

In a high-end system, your DAC is only as good as the signal it receives. The PA1-REF sits between your source and DAC, rebuilding the USB signal with ultra-low noise power and precision clocking, allowing your system to perform at its true capability.

---

What It Actually Does (And Why It Matters)

Most digital sources — computers, streamers, servers — introduce:

• Electrical noise

• Jitter (timing errors)

• Power contamination over USB

The PA1-REF completely regenerates the USB signal using:

• FIFO buffering and reclocking

• Dedicated high-precision clock system

• Ultra-clean power delivery

This isolates your DAC from upstream noise and replaces it with a clean, stable, properly timed signal.

Result:

• Lower noise floor

• Improved clarity and micro-detail

• More natural decay and texture

• Better imaging and separation

---

Reference Clocking & Signal Regeneration

At the heart of the PA1-REF is a high-performance clock system and regeneration architecture.

• Independent precision clock (OCXO-based)

• FIFO buffer + asynchronous reclocking

• Designed to minimise jitter and phase noise

This ensures the outgoing USB signal is no longer dependent on your source device — it becomes clocked by the PA1-REF itself.

---

Supercapacitor Linear Power Design

One of the defining features of the PA1-REF is its supercapacitor-based power system.

• Large-capacity supercapacitors for energy storage

• Linear power supply with extremely low noise

• High current delivery with massive headroom

This allows:

• Instantaneous current delivery

• Reduced ripple and electrical noise

• Stable, ultra-clean power for USB regeneration

The power design is a major contributor to its audible performance.

---

Pure USB Regeneration (No Conversion)

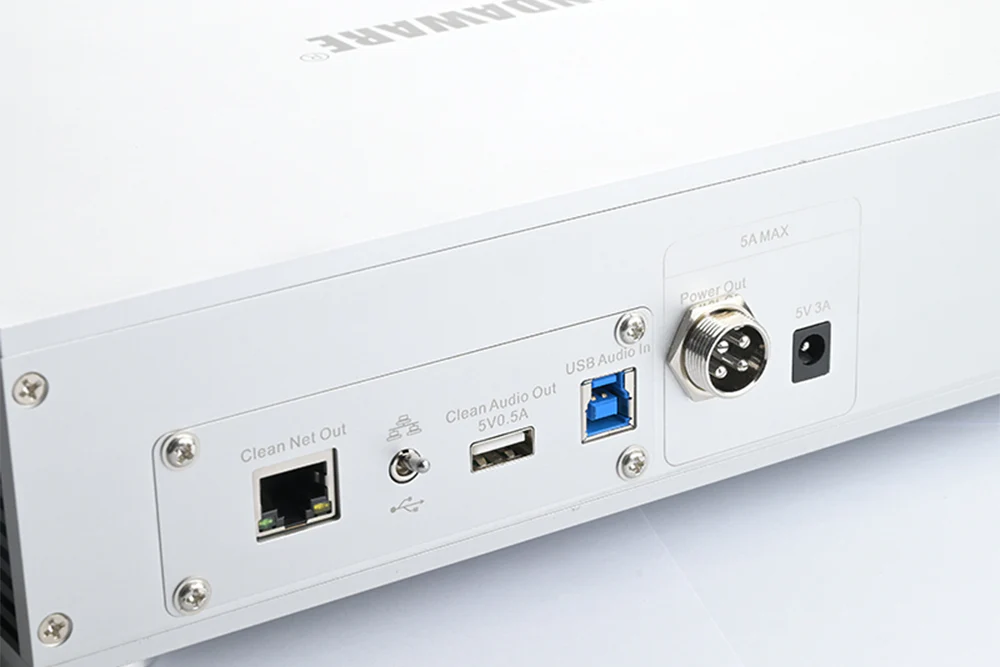

Unlike DDCs or converters, the PA1-REF is a pure USB in / USB out device.

• No format conversion

• No additional processing layers

• Supports very high sample rates (far beyond SPDIF limits)

This keeps the signal path simple and focused purely on cleaning and stabilising USB transmission.

---

System Matching – Where It Shines

The PA1-REF is best suited to systems where:

• A high-end DAC is already in place

• USB is the primary input

• The system is resolving enough to expose digital noise

Typical applications:

• PC / Music Server → PA1-REF → DAC

• Streamer / Roon Core → PA1-REF → DAC

It is especially effective with ladder DACs and high-resolution systems where USB quality becomes the bottleneck.

---

Important System Insight

This is not a “subtle tweak” product.

In a properly resolving system, the PA1-REF delivers:

• A noticeably darker background

• More stable imaging

• Increased tonal density

• Less digital harshness

It effectively removes the “digital edge” many systems struggle with.

---

Audiophile Shop Recommendation

From our testing, the PA1-REF is best used:

• As a final stage USB conditioner before your DAC

• In systems where you are already optimising power, clocking, and network

If you're already running a high-end front end (such as a dedicated server or Roon Core), the PA1-REF becomes the last piece that refines the signal before conversion.

---

Why Choose the PA1-REF

• True USB regeneration — not just filtering

• Reference-level clocking and power design

• Removes noise introduced by upstream devices

• Unlocks the full performance of high-end DACs

---

Available at Audiophile Shop

Supplied with local support, system matching advice, and real-world experience in high-performance systems.
